Product Details
＋

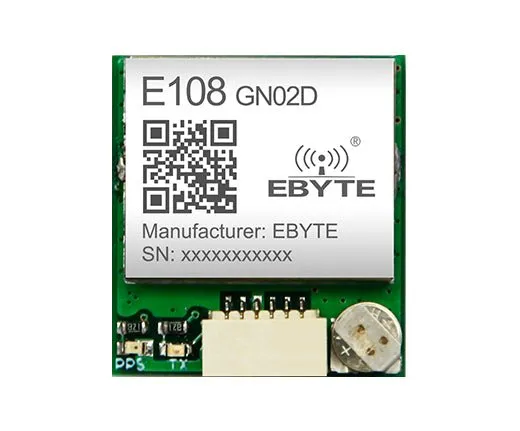

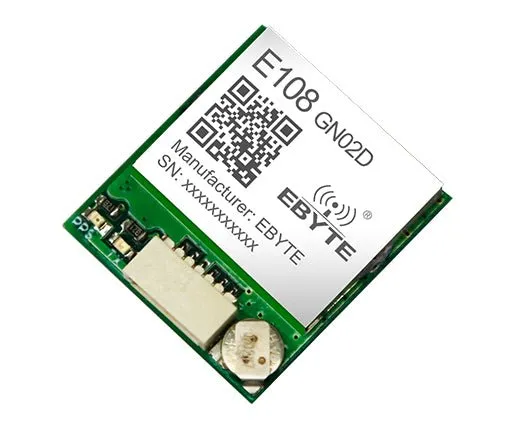

E108-GN02D is a low-power, low-cost multi-mode satellite positioning and navigation module. It is small in size and low in power consumption.It can be used for GNSS positioning such as car navigation, smart wear,and drone flight control Stay connected and informed with this low-power, low-cost multi-mode satellite positioning and navigation module.
Protocol: Support NMEA0183 V4.1 and previous versions, the maximum fixed update frequency can reach 10Hz
Certification: Pending
Weight: 5.5g
Package: 6P wiring seat, spacing 1.0mm
| Category | Description |
| letter of agreement |
Support NMEA0183 V4.1 and previous versions, the maximum fixed update frequency can reach 10Hz |
| Supported positioning system | BDS/GPS/GLONASS |
| Support peripheral interface | UART（TXD/RXD） |
| Low power consumption | Support |
| Periodic low power consumption | Support |
| Direct low power consumption | Support |
| Parameter setting software | Support |
| Certification | Pending |
| Module size | 22*20*5.8mm(L*W*H) |
| interface | 6P wiring seat, spacing 1.0mm |
| power supply | VCC（3-5.5V） |
| Serial port | Description |
| Communication level | 2.8V—3.3V（2.8V） |
| Baud rate (bps) | 9600~921600，default 9600 |
| Data bit | 8bit |
| Stop bit | 1 |
